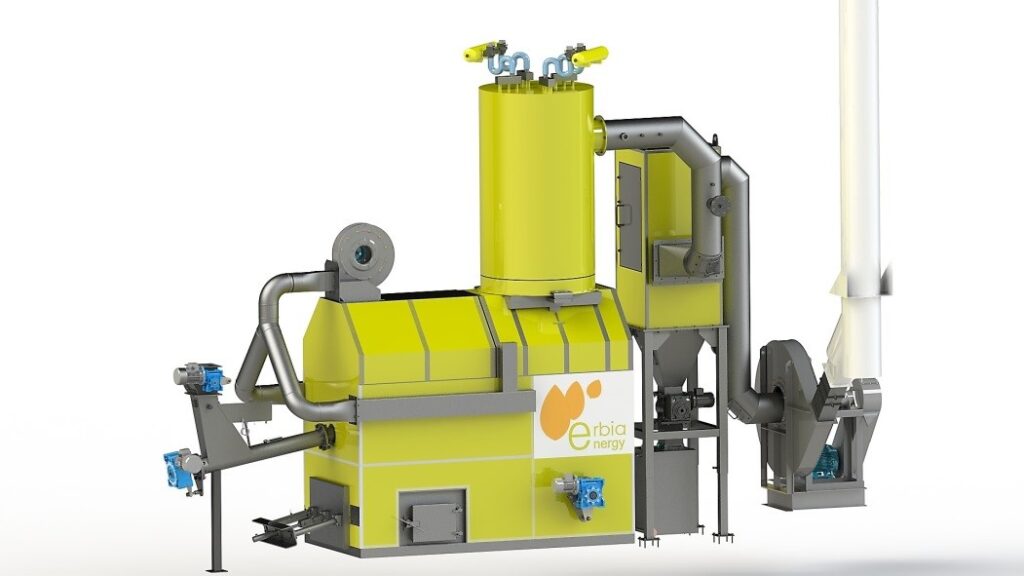

ERBIA ENERGY's thermal oil boilers, with three smoke passages, have the capacity to generate thermal power from 1MW to 8MW with working temperatures up to 360ºC.

All our combustion systems have a mobile grate with a refractory lining and a large combustion chamber where a good residence of the combustion gases and optimum temperatures are ensured for proper operation and thus achieve excellent performance and low CO emissions.

Our engineering department always designs based on the needs of each customer.

This boiler model allows you to choose between horizontal construction or vertical construction. There is practically no functional difference between a horizontal thermal fluid boiler or a vertical thermal oil boiler, leaving the decision subject to the space available, in plan and height, and to the ease of maintenance.

As advantages we can describe:

• Heat transmission at high temperatures and low pressure.
• More precise regulation of the temperature of the thermal fluid.
• Option to work at different temperatures in the same installation through secondary circuits.
• Easy maintenance.
